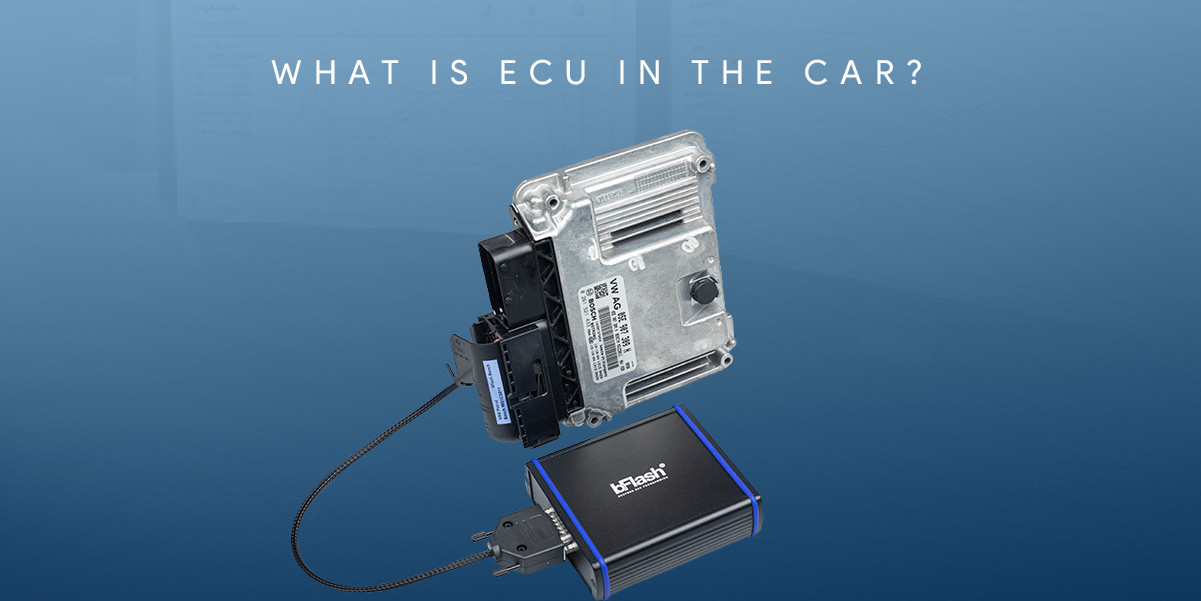

What is an ECU (Electronic Control Unit) in a car?
What would a tuner do without knowing what is an ECU - the vital component to modern day vehicles? The brain in the electronic system of every vehicle, one of the main functions of ECU is to manage and control vehicle system and its subsystems.
As you may expect, for anyone in tuning industry, knowing ins and outs of any given engine control unit is the bread and butter of the business. Keep on reading to learn everything tuners and automotive professionals need to know about ECU.
bFlash is a reprogrammation tool and we offer an opportunity to read/write ECUs to modify the software, datalog various parameters, activate dynomode, do the diagnostic and live-tuning. Contact us today to learn more about how bFlash can help your business.
Electronic control unit vs Engine control unit: what's the difference?
While both electronic control unit and engine control unit have the same abbreviation (ECU), one is broader than another. Electronic control unit processes data from various sensors and makes real-time decisions to control different aspects of the vehicle’s performance, while engine control unit is a specific one which manages the engine's operation only. In chiptuning, the term ECU is usually used for Engine Control Unit and this is what we will be focusing on in our blog post today.
Interesting fact #1: Do you know that some of the biggest manufacturers of ECUs include Bosch, Siemens, Denso, AcDelco, Continental, Vitesco, Valeo, Hitachi and more? Yes, Bosch does not produce small kitchen appliances only ;)
If everything sounds chinese to you, then check our compatibility list that includes all ECUs that bFlash tool has protocols for. It can give you a good overview on variety of engine control units currently available in the automotive market and how 1 control unit can be shared between various vehicles.
Engine Control Module (ECM) is another common term you may see across automotive forums and websites. It refers to managing the engine's performance. For example, ECU goes beyond pure engine influence and extends to transmission shift points and stability control systems. But ECM focuses solely on engine's performance and plays vital role in managing air-fuel mixture, valve timing, ignition system, idle speed to optimise engine performance.
Diving deeper into ECU, PCM, TCU and other terms
In chiptuning business, it is important to know a few different terms that are all related to Engine or transmission control module
Engine Control Units
PCM (Powertrain Control Module): Common in American vehicles (Ford, GM, Chrysler). It can combine engine and transmission control. It has become with the years another name for an ECM.
DME (Digital Motor Electronics): Typically used by BMW and some European manufacturers.
EMS (Engine Management System): A broad term often used in the aftermarket and by various OEMs.
ECM (Engine Control Module): Common in Japanese and Korean vehicles (Toyota, Honda, Hyundai, etc.). Often interchangeable with ECU, but typically specific to engine management.
Popular examples:
MED17 / EDC17 from Bosch. ME17 control units are dedicated to petrol engines, while EDC17 are for diesel. This comes from the early days of electronic control unit ecu (ME3, EDC15). Automotive technology has gone a long way since then, with ever
Global B family from AcDelco, which encompasses E41, E90, E99
Interesting fact #2: Each ECU producer employs a different logic behind naming their units. Let's take MD1CP001, where MD1 indicates a generation of Bosch ECUs. The MD1 series is part of the Modular Diesel Control Unit family. These ECUs are used primarily in diesel engines, and are designed for compliance with modern emissions standards like Euro 6. CP001: This is a specific variant or version of the ECU model, which can denote different configurations for particular vehicles or manufacturers.
Transmission Control Units
TCU (Transmission Control Unit): Manages automatic transmission functions.
TCM (Transmission Control Module): Same as TCU; terminology varies by manufacturer.
Popular examples:
EGS: Used by BMW for their transmission control (Elektronische Getriebe Steuerung). Who are now using ZF and Bosch 8HP. The 8HP.g3 is one of the most tuned and swapped transmission.
VGS: Used by Mercedes-Benz for transmission control (Valve Gear Set). They can also have commercial names like 9G-Tronic or 8G-Tronic, for which bFlash still has exclusivity.
For VAG group, you'll find DQ200, DQ250, DQ500 or AL500. DQ transmisions are for transversal engines, while AL transmissions mount on longitudinal powertrains.
Other Related Control Modules :
CPC (Central Powertrain Controller or Central Powertrain Computer): Found in modern Mercedes-Benz vehicles, it manages the overall coordination of engine and transmission systems and integrates with other powertrain components.
VCU (Vehicle Control Unit): Common in electric vehicles, integrating various powertrain management functions.
BCM (Body Control Module): Manages non-powertrain functions like lighting, windows, and door locks.
With progress in Automotive technology, and high tech system trickling down, other vehicle systems are now ubiquitous and manage everything from Brake control module, to Suspension control module, Advanced driver assistance systems (ADAS). Those various vehicle systems improve vehicle occupants safety by avoiding wheel lock up, brake pressure, or other essential functions like managing crash sensors, airbag deployment.
How does the ECU control my engine ?
Engine control unit (ECU) is a specialized computer that manages the operation of the vehicle's engine. It is responsible for monitoring and influencing a wide range of systems, including fuel injection, ignition timing, air-fuel ratio, turbocharger boost pressure, and emissions controls. Essentially, the ECU ensures that your engine runs smoothly, efficiently, and within safe parameters.
Modern vehicles are equipped with dozens of sensors that collect real-time data on engine conditions, such as air temperature, throttle position, engine speed (RPM), wheel speed (which equates to vehicle speed for a single gear), oxygen levels in the exhaust, and more. The ECU processes this data and adjusts the engine's operation accordingly. For example, if the throttle is pressed, the ECU calculates how much fuel to inject and when to ignite the spark plugs to deliver the optimal performance.
With tools such as bFlash, tuners get access to the embedded software, which is a binary file. To avoid delving too much inside the complexity of a car's ecu, let's says that the file is composed in main parts : The Bootloader, the Application software, the Calibration, the EEPROM.
See the Bootloader as the OS of the car's ecu : Windows
The Application software acts like an application inside the car's ecu. It will tell it how the calibration must be interpreted. It's the Excel application that will help translate the data, an essential guide.
The calibration is the data, the Excel spreadsheet itself, usually what is modified for a basic tune. The ecu work is to understand those 'maps' to manage fuel injection, ignition timing, and any other engine control thanks to its sensors.
Sometimes, it also receives input from other ecus : if you lose power when the wheels slip, it is because the ESP safety system asks for the car's ecu to shut fuel injection. Not enough fuel = no power.
Tuners can change parameters to increase engine efficiency by outputting more power, or focus on fuel efficiency for less fuel consumption.
Lastly, the EEPROM can be seen as the memory of the car itself. It stores data longterm. It can be from sensors like your odometer, our juste the VIN of your car to match it with the proper car's ecu.
What is CAN Bus? Or in other words, let's look at how ECUs communicate
You may have come across the term "CAN Bus" in articles about ECUs. But what exactly is it? The CAN Bus (Controller Area Network) is a communication system used in vehicles and machinery that allows Electronic Control Units (ECUs) to exchange information directly—without the need for a central computer. For instance, the CAN Bus allows your car’s engine and braking systems to quickly and reliably share data with each other.
Each ECU on the CAN bus functions as an independent node, capable of both sending and receiving data. When a message is sent, it is broadcast across the bus, allowing every ECU to evaluate the data coming from sensors or as input from other ecus and decide whether to act on it or ignore it.
To manage communication efficiently, the CAN system uses an arbitration mechanism. This allows higher-priority messages to take precedence when multiple nodes attempt to transmit at the same time. By assigning an arbitration ID to each message, the system ensures that critical communications—such as those related to safety features like Anti-lock Braking Systems (ABS) or Electronic Stability Control (ESC)—are delivered first, with minimal delay. This prioritization plays a crucial role in ensuring that important safety systems commands are executed promptly, improving both the responsiveness and safety of the vehicle.
Interesting fact #3: Do you know that bFlash offer CAN Bus recording via bSpy feature? You can use this feature to record and save the communication and files that the OEM diagnostic tool is sending to the car during a software update at the dealership. Overall, it can be used for troubleshooting, diagnostics, and repair. But this is not the only extra capability of the tool. Made around unique functionalities like Live tuning as well, you can find all our features on our website.
Common Signs of ECU Problems and how bFlash can help you
Seeing a faulty ECU is probably one of the worst nightmares of any automotive professionals. Here are the most common signs of a bad ECU:
Check engine light remains on even after a reset
Vehicle was jump-started with reverse polarity
Engine shuts off unexpectedly without warning
ECU has suffered water or fire damage
No apparent spark during ignition
No fuel injection pulse or fuel pump activation
Intermittent starting or prolonged cranking issues
ECU overheating due to faulty internal components
Broken or damaged connector pins on the ECU
No communication with diagnostic scanner tools
Checksum or data integrity errors
Replacement ECU incompatible with vehicle's security coding
bFlash is a tool, that can help you read and clear fault codes for various ECUs and TCUs. Depending on the unit, the list of faults, also called DTC (for Diagnostic Trouble Code) can be retrieved either in SAE/OBDII mode or manufacturer-specific mode (KWP/UDS).
Increasing complexity in automotive technology makes accessing the car's ecu ever more complicated. Like we saw, other components are involved, and it is important to make sure that every input is taken into account properly.
Even more so than vehicle performance, fuel economy, the car's ecu controls the pumping heart of the car, and any faulty ecu, even if it is not a serious fault, may result in a total loss of the engine functionality.
Companies like bFlash work to find new ways to access recent units. It is a competitive landscape and companies fight to find exclusive solutions to make a difference. bFlash has been enjoying the only solution on the market for Mercedes MD1 and MG1 controls units. Technique is so advanced that it requires sending the car's ecu to bFlash engineers in Belgium. You can find all our Mercedes ECU Unlocks here.
FAQs: bFlash and ECUs
Q: Can bFlash help if my ECU is not responding?
Yes—bFlash can assist in identifying communication issues and retrieving fault data that may explain why the ECU is non-responsive.
Q: Can I use bFlash to program ECUs?
In many cases, yes—especially if the used ECU matches the target vehicle and supports security code reprogramming.
Q: How do I know if my ECU is supported?
Check our compatibility list to see all the supported units and protocols.
Understanding the ECU is key to mastering modern vehicle tuning. From diagnostics and repair to performance tuning and software development, the ECU is the cornerstone of today's automotive technology. With tools like bFlash, you have the power to unlock your full tuning potential.
Got questions or need a demo? Contact us today to see how bFlash can boost your automotive business.
